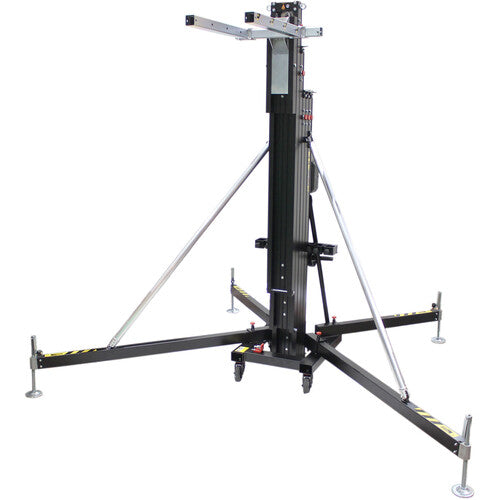

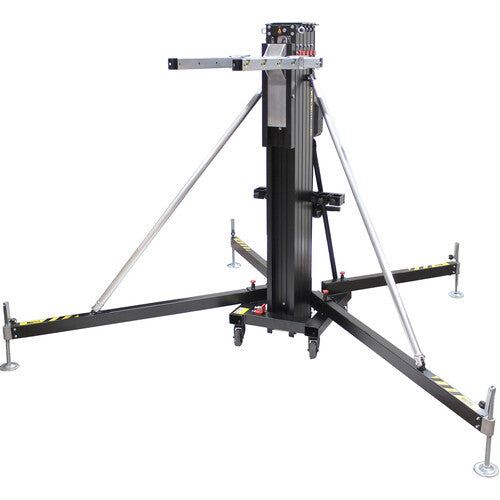

ProX FANTEK Compact Front-Loading Lifting Line Array Systems Tower (19.5' Max Height, 728 lb Load Capacity)

• Design to fly line array systems, trussing and LED screens
• Built from quality components to ensure maximum safety
• Raise the load from the floor.
• CE - DGUV V17/18 Certified compliant
• XT-FT6033 is made by FANTEK in Valencia Spain
• Minimum Height: 5.64'
• Max Height: 19.5'
• Max Load: 727.5 lb
• Winch: 1984.2 lb
• Steel Loading Forks: 23.62"

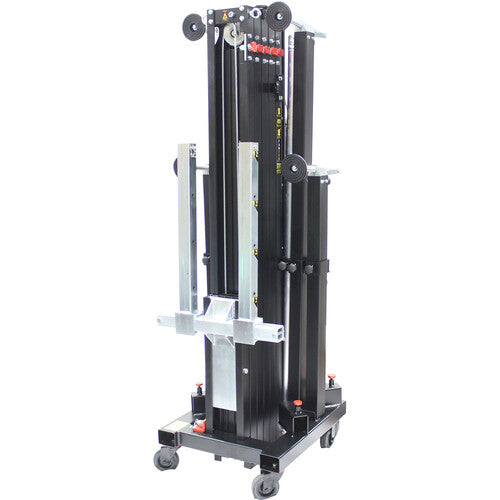

These Patented Dynamic Overlap stacking trusses (5 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety, are specially designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK® towers use a reinforced steel base with outriggers that support heavy loads and high heights. During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope.

DYNSYS is a system designed to guarantee the health and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch. When this is exceeded, the system acts and prevents the lifting process.

WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.
