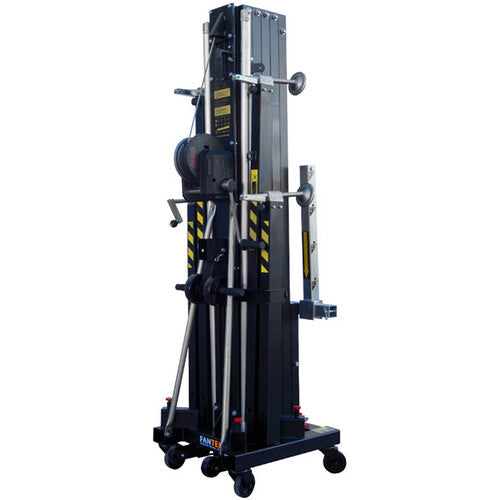

Elevate your line arrays, trussing, or LED screens with the ProX XTF-FT7045 FANTEK Spain Compact Front Loading Lifting Line Array Systems Towers, a complete lifting system that's ideal for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, and more.)

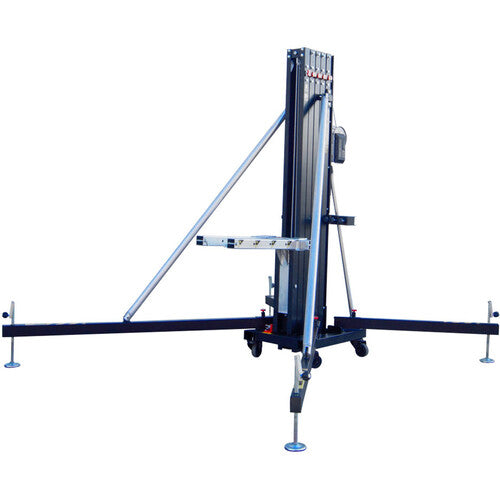

The front-loading tower is specifically designed to reliably lift line array systems weighing up to 992 lb to a maximum height of 22'. The compact design with castors gives each XTF-FT7045 tower easy handling and maneuverability and with a folded height of only folded height of 6.23', it also reduces storage space. The system includes an XTF-ATF17PA Line Array Adapter with hanging rings.
At a peak:
- Design to fly line array systems, trussing and LED screens
- Built from quality components to ensure maximum safety
- Raise the load from the floor.
- CE - DGUV V17/18 Certified compliant
- XT-FT7045 is made by FANTEK in Valencia Spain
- Minimum Height: 6.23'
- Max Height: 22'
- Max Load: 992.1 lb
- Winch: 1003.1 lb
- Steel Loading Forks: 19.7"
Dynamic Overlap:
Dynamic Overlap stacking trusses (4 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety. They are designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and greater heights. During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope.
DYNSYS:
DYNSYS is a system designed to guarantee the health and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch. When this is exceeded, the system acts and prevents the lifting process.
WIREDRIVE:
WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.
