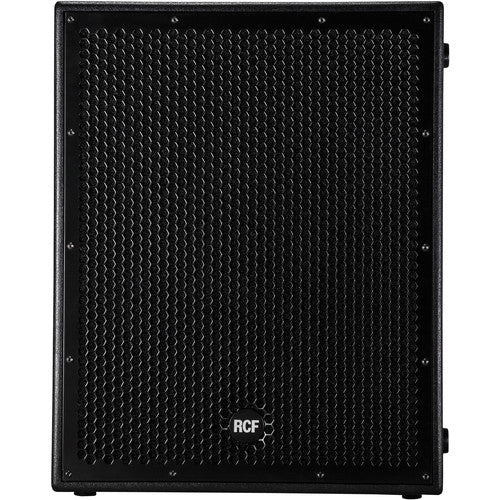

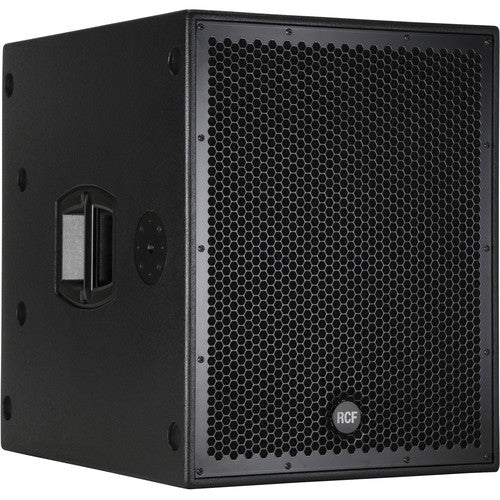

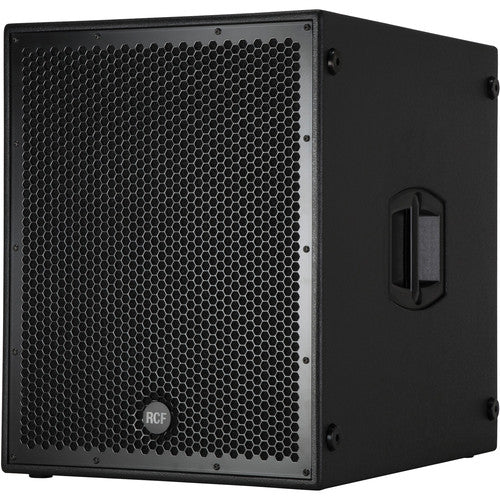

RCF SUB 8004-AS Professional Series 2500W 18" Active Subwoofer

RCF SUB 8004-AS Professional Series 2500W 18" Active Subwoofer

Regular price $3,499.00 USD
Regular price Sale price $3,499.00 USD
Sale Sold out
Key Features
  • 2500W Peak Class-D Amplifier

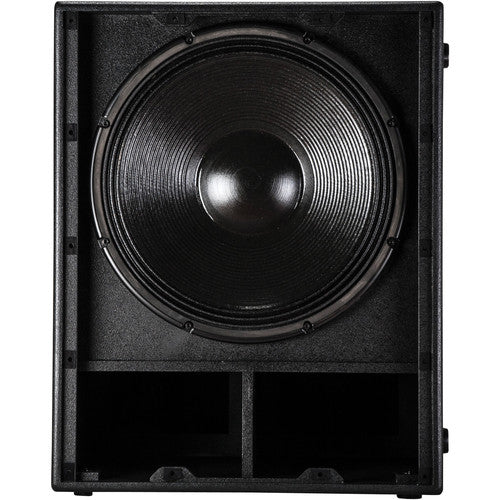

  • High-Power Hypervented 18" Woofer
  • 30 to 120 Hz Frequency Response
  • 136 dB Max SPL
  • DSP Controlled Inputs with Presets
  • Delay Control
  • Baltic Birch Tour Grade Cabinet

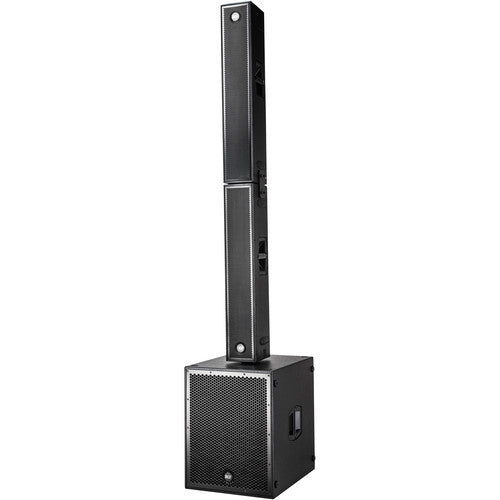

  • Compatible with NXL23-A / NXL24-A
  • Works with HDL 10-A and HDL 20-A

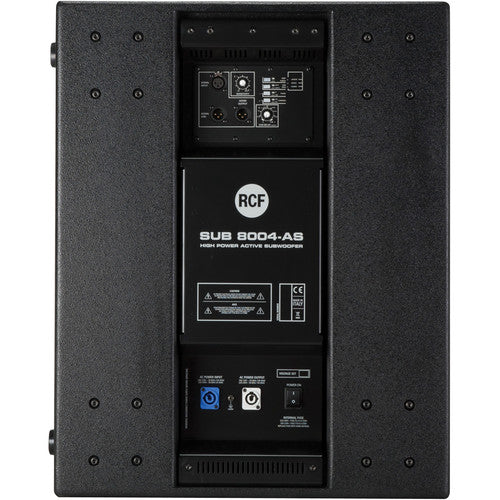

The black SUB 8004-AS Professional Series Active Subwoofer from RCF features a high-power, hypervented 18" woofer with 4" inside/outside voice coils designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high-pass switch, phase switch, cardioid, and time delay.

The sub is stackable and lightweight for easy set up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the sub in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducer from dust.

Powerful Class-D Amplifier
RCF's Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultrafast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure, which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.
The Transducers Innovators
RCF developed advanced transducer technology including the application of high-tech materials such as neodymium, carbon fiber, pure titanium, kevlar, kapton, and mylar hybrids. RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming.
Legendary Subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio.
Cabinet & Mechanics
The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and lightweight, for easy set up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.
Configuration Active Subwoofer
Enclosure Type Subwoofer
Total Power Capacity 2500 W Peak
1250 W RMS
Amplifier Class Class-D
Drivers
HF Driver None
MF Driver None
LF Driver 1 x 18" / 45.7 cm Woofer
LF Voice Coil Dual 4" / 10.2 cm
Performance
Frequency Response 30 Hz to 120 Hz
Maximum SPL 136 dB
Input Sensitivity -2 dBu (Min)
4 dBu (Max)
Protections RMS, Thermal
Connectivity
Audio I/O 1 x XLR 3-Pin Female Balanced Line Input
1 x XLR 3-Pin Male Balanced Line Output
Network I/O None
USB None
Wireless Connectivity None
Signal Processing
EQ None
Parametric EQ None
Semi-Parametric EQ None
Filters Low-Pass:
90 Hz / 120 Hz
Dynamic Processing Fast Limiter
Alignment Delay None
Phase Adjustment Yes
Digital Signal Processing Delay
Power
AC Input Power Factory Selectable:
100 to 120 VAC, 50 / 60 Hz (T 10 A H 250 V)
AC Power Connector 1 x powerCON Input (Locking)
1 x powerCON Output (Locking)
Physical
Handles 1 x Each Side
Cooling Convection
Construction Material Plywood
Certifications CE
*as per Manufacturer
Dimensions 27.6 to 22 x 27.6" / 700 to 558 x 700 mm
Weight 123 lb / 55.8 kg
Specifications
Item # RCSUB8004AS
MPN -
Manufacturer RCF
