RF Venue

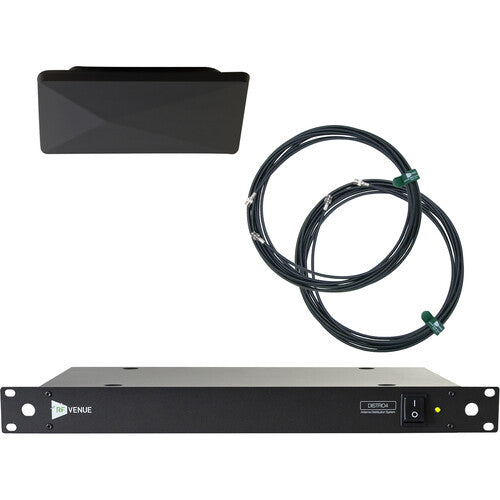

RF Venue Diversity Architectural Antenna & DISTRO4 4-Channel UHF Distribution System Pack (Black, 470 to 616 MHz)

RF Venue Diversity Architectural Antenna & DISTRO4 4-Channel UHF Distribution System Pack (Black, 470 to 616 MHz)

$1,449.99 USD
$1,449.99 USD
Sale Sold out
Key Features:
  • Improves Wireless Microphone Reception
  • Elegant Diversity Architectural Antenna
  • Discreet Antenna Mounts to Wall/Ceiling
  • DISTRO4 4-Channel UHF Distribution
  • Splits RF Signal and Powers Receivers
  • Includes BNC Cables & DC Jumpers
  • Antenna Design Maximizes Coverage
  • A and B Diversity Connections
  • Ceiling & Wall Mounting Kits Included.
RF Venue DISTRO4 4-Channel UHF Antenna Distribution System (470 to 952 MHz)

The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately). The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit's cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.

At a Glance:
  • Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
  • Routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system
  • Compensates for signal strength lost in the splitting process with high-quality amplifiers
  • Provides DC powering for up to 4 receivers
  • Internal switch applies DC power over coaxial cable to antenna connections
  • Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTO4 units and receivers
  • Wide UHF bandwidth from 470 to 952 MHz
  • Works with any UHF wireless system that supports remote antenna mounting
  • 1 RU full-rack width to install near receivers
  • 2000mA internal power supply (no wall wart)
Specifications
Item # -
MPN -
Manufacturer RF Venue
