Shure BLX14/B98 Wireless Cardioid Instrument Microphone System

Shure BLX14/B98 Wireless Cardioid Instrument Microphone System

$459.99 USD
$459.99 USD
Sale Sold out
Frquency Band
Key Features
  • For Wind & Percussion Instruments
  • WB98H/C Cardioid Clip-On Mic
  • Single-Channel Tabletop Receiver
  • 123 Auto-Scan Frequencies
  • Internal Antenna Diversity
  • 14-Hr AA Batteries
  • Expandable to 12 Mic Channels/300' Range

The Shure BLX14/B98 brings brass, woodwind, and percussion players a cost-effective wireless instrument microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the compact and lightweight BLX4 single-channel tabletop receiver with internal antennas, ideal for portable use.

The BLX14/B98 also includes a bodypack transmitter and a WB98H/C cardioid gooseneck mic with an integrated clip ready to attach to your instrument. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

This streamlined system is well suited for live performance in small music venues, wedding halls, and houses of worship.

Clip-On Instrument Mic for Bright & Detailed Sound
The WB98H/C miniature condenser microphone clamps onto the bell of wind instruments or onto the rim of percussion instruments. It features a cardioid polar pattern that helps reject unwanted noise in loud environments. The integrated gooseneck and ratcheting swivel joint allow the microphone to be easily positioned and secured, and an isolation shock-mount reduces the transmission of instrument key noise and other mechanical sounds.
Lightweight Bodypack Transmitter

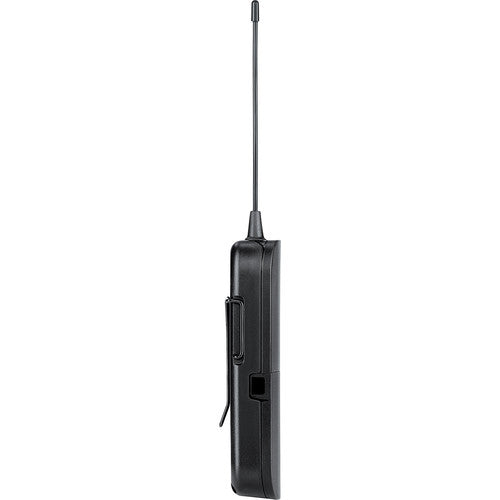

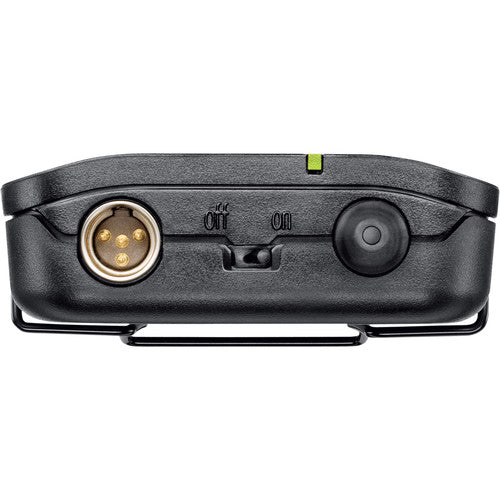

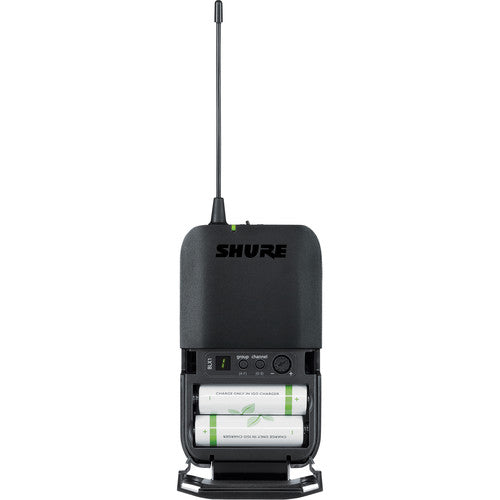

The durable BLX1 bodypack transmitter offers a lightweight, ergonomic design that is comfortable for the musician to wear. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off switch, adjustable gain control, and a TA4M 4-pin input jack.
Easy-to-Use Tabletop Receiver for Quality Audio

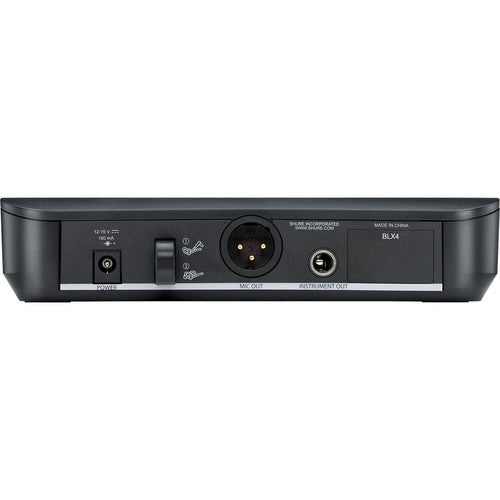

The BLX4 receiver employs microprocessor-controlled internal antenna diversity to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4" and XLR outputs for connectivity to PA systems and mixing boards.
A Versatile System to Meet Your Needs
Shure offers a variety of lavalier, instrument, headset, and handheld microphone options to adapt your BLX system as your needs evolve.



  • The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
  • For fitness instructors, the SM31FH is a rugged, moisture-repelling headset microphone designed to stay secure and comfortable during active performances.
  • The CVL lavalier mic offers low visibility and clear vocal reproduction for discreet applications.
  • The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
  • The BLX2 handheld transmitter is available with three different mic capsules for presenters who prefer the flexibility of a handheld microphone.

Shure BLX14/B98 Specs

System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 123
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band H9:
512 to 542 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Transmitters per Band 12
Dynamic Range 100 dBA
Receiver
Receiver Type Tabletop
Antenna 2 x Internal, Fixed
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Unbalanced Output
Audio Output Level XLR Output:
-27 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
200 Ohms
1/4" Output:
50 Ohms
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 160 mA, Center-Positive (Included)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
2 x LED (AF Level, Sync)
Housing ABS
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
Weight 8.5 oz / 241 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting Off/On Switch
Auto-Level Control No
Gain Range -16 to +10 dB
Sync Method Manual
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions  64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
Microphone
Microphone Type Clip-On Instrument
Instrument Mic Type Clarinet, French Horn, Percussion/Drum, Saxophone, Trombone, Trumpet, Tuba
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 20 Hz to 20 kHz
SNR 63 dB
Equivalent Noise Level 31 dB
Maximum SPL 155 dB SPL
Impedance 150 Ohms
Dynamic Range 132 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length 5.3' / 1.62 m
